General variables
Variables descriptions
Some variable are independent of the segments organisation as they define the global display of the prompt v1 and prompt v2.
Columns v1 and v2 in the following table show default value depending on
prompt version. If value is None, this means that no value is assigned by
default.
Below are variables used independently of segments used. They are used to set
main colors background and foreground.
| Variables | v1 | v2 | Description |
|---|---|---|---|
PROMPT_ENV_LEFT |
[ |
None |
Character on the left of the segment for v1, Separator for segment on the left part of v2. |
PROMPT_ENV_RIGHT |
] |
None |
Character on the right of the segment for v1, Separator for segment on the right part of v2. |
S_LINE_PROMPT_END |
None |
None |
Character at the end of the prompt when prompt does not fill terminal line, i.e. when not using hfill segment.Same behaviour for v1 and v2. |
M_LINE_PROMPT_END |
|
|
Character at the end of the prompt when prompt does fill terminal line, i.e. when using hfill segment. Same behaviour for v1 and v2. |
DEFAULT_FG |
white | white | Default foreground color, i.e. the fallback colors when foreground is not defined for a segment. |
DEFAULT_BG |
black | black | Default background color, i.e. the color of the horizontal line. Also, the fallback of background colors when not define for a segment in v2. |
CORRECT_WRONG_FG |
white | white | If using zsh, the foreground colors of the wrong command when printing command correction. |
CORRECT_RIGHT_FG |
white | white | If using zsh, the foreground colors of the proposed command when printing correction. |
For variables having FG or BG, i.e. defining respectively foreground or
background colors, when setting colors variables, you do not need to write the
full syntax, just enter the color code corresponding of the color your want. The
surrounded of the color code will be set by dynamic prompt depending on your
terminal. Example of value are shown below:
| Color | 8 colors | 256 colors | True colors |
|---|---|---|---|
| Red | 1 | 196 | 255;0;0 |
| Green | 2 | 046 | 0;255;0 |
| Blue | 4 | 021 | 0;0;255 |
Set of 256 colors supported by 256 colors terminal are shown at the end of the
file common.exemple.sh and in the image below. The number on the left of
hexadecimal colors value is the code of this color in 256 colors support.
Some examples
As always, images and examples are the best explications. Below are some
examples with different values for previously described variables. As before, to
better see the segment, the file common.example.sh is used as base
configuration for screenshots below.
Prompt v1
Default values
Below is the value of these variables in you want to put them in your configuration file but if you want to use their default value.
PROMPT_ENV_LEFT="["
PROMPT_ENV_RIGHT="]"
S_LINE_PROMPT_END=""
M_LINE_PROMPT_END=" "
DEFAULT_FG=""
DEFAULT_BG=""
CORRECT_WRONG_FG=""
CORRECT_RIGHT_FG=""
common.examples.sh values - 8/16 colors support
Below is the example of the content of these values in the example file
common.example.sh on terminal that support only 8 colors
PROMPT_ENV_LEFT="[" # v1 Default "["
PROMPT_ENV_RIGHT="]" # v1 Default "]"
S_LINE_PROMPT_END="" # Default ""
M_LINE_PROMPT_END=" " # Default " "
DEFAULT_FG="0" # Usually black
DEFAULT_BG="1" # Usually red
CORRECT_WRONG_FG="1" # Usually red
CORRECT_RIGHT_FG="2" # Usually green

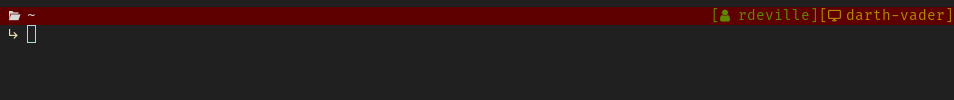

common.examples.sh values - 256 colors support
Below is the example of the content of these values in the example file
common.example.sh on terminal that support 256 colors
PROMPT_ENV_LEFT="[" # v1 Default "]"
PROMPT_ENV_RIGHT="]" # v1 Default "["
S_LINE_PROMPT_END="" # Default ""
M_LINE_PROMPT_END=" " # Default " "
DEFAULT_FG="16" # rgb(000,000,000) # 000000
DEFAULT_BG="52" # rgb(095,000,000) # 5F0000
CORRECT_WRONG_FG="160" # rgb(215,000,000) # D70000
CORRECT_RIGHT_FG="40" # rgb(000,215,000) # 00D700
common.examples.sh values - true colors support (i.e. 24 bits colors)
Below is the example of the content of these values in the example file
common.example.sh on terminal that support true colors
PROMPT_ENV_LEFT="[" # v1 Default "]"
PROMPT_ENV_RIGHT="]" # v1 Default "]"
S_LINE_PROMPT_END="" # Default ""
M_LINE_PROMPT_END=" " # Default " "
DEFAULT_FG="0;0;0" # rgb(000,000,000) # 000000
DEFAULT_BG="95;0;0" # rgb(095,000,000) # 5F0000
CORRECT_WRONG_FG="215;0;0" # rgb(215,000,000) # D70000
CORRECT_RIGHT_FG="0;215;0" # rgb(000,215,000) # 00D700
![!Prompt v1 Common General Variables true colors][prompt_v1_common_general_variables_true_colors]
Prompt v2
Following examples assume your terminal support unicode characters.

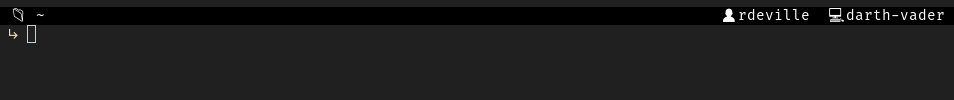

Default values
Below is the value of these variables in you want to put them in your configuration file but if you want to use their default value.
PROMPT_ENV_LEFT=""
PROMPT_ENV_RIGHT=""
S_LINE_PROMPT_END=""
M_LINE_PROMPT_END=" "
DEFAULT_FG=""
DEFAULT_BG=""
CORRECT_WRONG_FG=""
CORRECT_RIGHT_FG=""

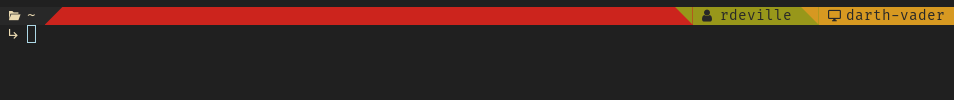

common.examples.sh values - 8/16 colors support
Below is the example of the content of these values in the example file
common.example.sh on terminal that support only 8 colors
PROMPT_ENV_LEFT=" " # v2 Default ""
PROMPT_ENV_RIGHT=" " # v2 Default ""
S_LINE_PROMPT_END="" # Default ""
M_LINE_PROMPT_END=" " # Default " "
DEFAULT_FG="0" # Usually black
DEFAULT_BG="1" # Usually red
CORRECT_WRONG_FG="1" # Usually red
CORRECT_RIGHT_FG="2" # Usually green

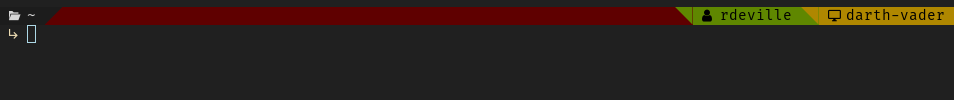

common.examples.sh values - 256 colors support
Below is the example of the content of these values in the example file
common.example.sh on terminal that support 256 colors
PROMPT_ENV_LEFT=" " # v2 Default ""
PROMPT_ENV_RIGHT=" " # v2 Default ""
S_LINE_PROMPT_END="" # Default ""
M_LINE_PROMPT_END=" " # Default " "
DEFAULT_FG="16" # rgb(000,000,000) # 000000
DEFAULT_BG="52" # rgb(095,000,000) # 5F0000
CORRECT_WRONG_FG="160" # rgb(215,000,000) # D70000
CORRECT_RIGHT_FG="40" # rgb(000,215,000) # 00D700
common.examples.sh values - true colors support (i.e. 24 bits colors)
Below is the example of the content of these values in the example file
common.example.sh on terminal that support true colors
PROMPT_ENV_LEFT=" " # v2 Default ""
PROMPT_ENV_RIGHT=" " # v2 Default ""
S_LINE_PROMPT_END="" # Default ""
M_LINE_PROMPT_END=" " # Default " "
DEFAULT_FG="0;0;0" # rgb(000,000,000) # 000000
DEFAULT_BG="95;0;0" # rgb(095,000,000) # 5F0000
CORRECT_WRONG_FG="215;0;0" # rgb(215,000,000) # D70000
CORRECT_RIGHT_FG="0;215;0" # rgb(000,215,000) # 00D700
As you may have seen on examples above for prompt v1 and v2, there is only little differences between variables values but both use these variables to compute prompt lines.
Additional notes
If you want a good starting point, I provided a file common.example.sh that
have a base configuration.
This file have lots of comment to help you understand what variables stands for.
Moreover, in this file, I already handled most configuration, such as defining variable for 8/16 colors terminal emulator, 256 colors terminal emulator and true colors terminal emulator.
You can copy it to your desire $(hostname).sh, copy it to common.sh or make
a symlnks to it if you wish to use the same as mine (not recommended as you will
have udpates from the upstream common.examples.sh even if you do not want).
Remark that all variables start with local, which can look like odds in bash
scripts, because this should not be working, and you are "almost" right. Alone
this script will not work, it is because it is sourced by prompt.sh that make
this script work. Moreover, the local in front of variable are here to avoid
making these variables global and so adding some mess in your environment
variables.
Now that prompt line organisation and behaviour are set, as well as the general
variables, you may want to configure segments you have decided to use as define
in your variable SEGMENT.
To to so, see All supported segments which list currently supported segment as well as link to each of their individual documentations.
